Railroad Bolt for Fastening System RB-9 manufacturer from China Kunshan Alex Railway Fastening Co.,Ltd.

Price:	1.2 USD
Payment Terms:	T/T,L/C
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: RB-9

Production Capacity: 600, 000PCS/Month

Delivery Date: 20days

Surface Finish:: Plain, Black, Phosphate, Zi...

Means of Transport: Ocean,Land,Air

Packing: Double-Layer Woven Bag, Fum...

Brand Name: Alex

Sizes:: 3/8", 1", 1 3/8", 1 1/2" or...

Trademark:
ALEX
Packing:
Double-Layer Woven Bag, Fumigation-Free Pallets
Standard:
SAE J429
Origin:
Suzhou, Jiangsu
HS Code:
7318150000

Product Details

Model NO.:RB-9

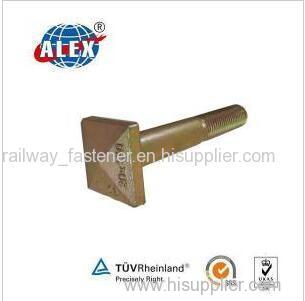

Type:Railroad Bolt for Fastening System

Part:Fish Bolt

Warranty:>3 Years

Certification:UIC, AREMA, ASTM, BS, TB

Bolt Grade:8.8

Color:Customized

Raw Material:Q235,35#,45#, 40cr

Certificate:ISO9001:2008

Std No.:Arema 2010, BS47-1, DIN5902.1: 2002 etc

Surface Finish:Plain, Black, Phosphate, Zinc , HDG

Sizes:3/8", 1", 1 3/8", 1 1/2" or Others

Inspection:Internal and 3rd Parties

Inspection Reports:Chemical Composition, Physical Property and Sizes

Sample Policy:Sample Free, Freight Collect

Process Control:Internal

Production Update:Weekly Reports Will Be Provided

Export Markets:Global

Additional Info.

Trademark:ALEX

Packing:Double-Layer Woven Bag, Fumigation-Free Pallets

Standard:AREMA 2010, BS47-1, DIN5902.1: 2002 etc

Origin:Suzhou, Jiangsu

HS Code:7318150000

Production Capacity:600, 000PCS/Month

Product Description

Standard: ASTM, DIN, BSW, GB, JIS, UIC, Russian or drawings from customers.
Materail: Carbon steel or stainless steel, Q195, Q235, 35#, 45#, 35CrMo, 42CrMo, 40Cr etc.
Surface Finish: plain (oiled), hot dip galvanized, white zink plated, yellow zink plated, black, dacromet, geomet or others specified by the customers.

D	L	I	Threads Per Inch
Nom. Dia. Over Thread	Length Under Head	Min. Thread Length	Threads Per Inch
7/8	Under 7",in steps of 1/4" From 7" to 10" in steps of 1/2"	2"	9
1		2-1/4"	8
1-1/8		2-1/2"	7
Additional Sizes Now in Use But Not Recommended for New Designs
13/16	Same as above	1-7/8"	10
15/16		2-7/8"	9
1-1/16		2-3/8"	8
Note: All dimensions given in inches. Tolerances: Length (L) ± 1/8", Neck (O and R1) ± 0.0313", Head (A and H) ± 0.0625", R2 ±0.0175" In ordering bolts, specify the nominal diameter, "D" , over the threads and not the body diameter.

Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.

We can provide products according to customers drawings and samples.Our main products are as following:

1. Elastic Rail Clip and Clamp, SKL clip,E Clip, Deenik clip, Fist clip;
2. Rail Screw Spike/coach screw/drive screw/dog spike;
3. Plastic Dowel/screw dowel;
4. Track Bolt with Nut;
5. Rail Base (Tie) Plate;
6. Rail Fish Plate, Fish Bolt, nut and washers;
7. Railway Shoulder (Insert);
8. Railroad Rubber and EVA Pad;
9. Rail spring washer, Rail plain washer;
10. Rail Clamp plate;
11. Train Block shoe/ Brake block;
12. Rail Anchor;
13. Rail Shoulder;
14. Steel Rail;
15. Steel Sleeper.
